12' Bagger

Superior, Dependable Machinery Since 1945

100" rotor 2-wheel big bagger

Reduce manpower and provide flexibility in marketing grains

Benefits

  • • Affordable
  • • Easy to operate
  • • Bag big quantities in small areas
  • • Tongue centered for close bag spacing and road travel
  • • Wheels and tongue rotate to travel position

Standard Features

  • • 100" rotor with 92 packing bars with tine caps
  • • Patented "Centerline" Raised Rotor
  • • Puts up to 15% more in the bag than bottom-pack units
  • • Packs more punch from the center, with less H.P., for tighter, more uniform bags of feed
  • • Higher quality feed due to more even packing
  • • One-man bag lift-loader
  • • Self-cleaning tunnel (no need for tunnel clean out)

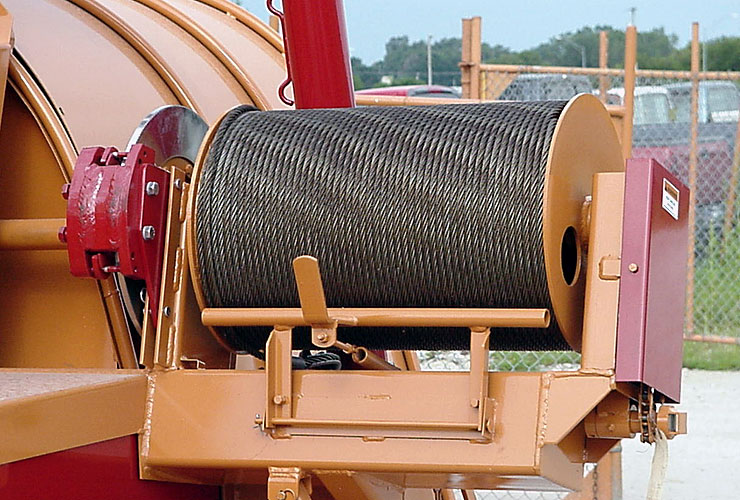

  • • 14" cable drums with single-wrap cables for up to 200 ft. bag
  • • 2" diameter cable drum shaft
  • • U. S. made RC-160 roller chain drive running in an oil bath
  • • 3-7/16" bore-tapered TIMKEN roller bearing on drive and idler end
  • • Dual mechanical brake calipers
  • • Bag lift with cradle
  • • #662 conveyor chain
  • • Hydraulic cable rewind
  • 1/4" double endplate which prevents silage juice from reaching the main rotor bearing
  • • Remote grease bank for all rotor bearings
  • • 250-415 ton capacity
  • • New radial ribbed implement recap tires (P235/R16)

"The 12-foot Centerline is easy to operate and it's affordable, even with the current milk prices. Plus, it allows me to bag a big quantity in small areas." - Greg Tollefson, Whitehall, Wisconsin

Standard Equipment

  • • Rust-free chrome disc mechanical brake
  • • No matter how much the temperature changes, the mechanical brake keeps the tension consistent throughout the bagging process
  • • Bondioli 2201 Gearbox
  • • 540 rpm, 1000 rpm PTO
  • • Same gearbox as Centerline Pro, rated at 150 horsepower

Optional Features

  • • Hydraulic brake with hand pump and gauge
