8', 9', 10' Bagger

Superior, Dependable Machinery Since 1945

Two-wheel "Centerline" bagger

Reduce manpower and provide flexibility in marketing grains

Benefits

  • • Wheels and tongue rotate to travel position
  • • Tongue centered for close bag spacing and road travel

Standard Features

  • • Self-cleaning tunnel (no need for tunnel clean out)
  • • Cables single wrap up to 250'
  • • Hydraulic or mechanical break
  • • 540 rpm PTO (1000 available)
  • • Oil bath gearbox and drive chain
  • • #160 roller chain main rotor drive
  • • Mechanical or hydraulic driven conveyor
  • • 1' one-piece tunnel extension
  • • 72" rotor with 65 packing bars
  • • Wide bag cradle for large fold bags
  • • #662 detachable conveyor chain
  • • Dual mechanical brake calipers

Standard Equipment

  • • Rust-free chrome disc mechanical brake
  • • No matter how much the temperature changes, the mechanical brake keeps the tension consistent throughout the bagging process
  • • Hydraulic brake with hand pump and gauge
  • • Hydraulic cable rewind
  • • One-man bag lift
  • • Patented "Centerline" raised rotor
  • • Puts up to 15% more in the bag than bottom-pack units
  • • Packs more punch from the center, with less H.P., for tighter, more uniform bags of feed
  • • Higher quality feed due to more even packing

Optional Equipment

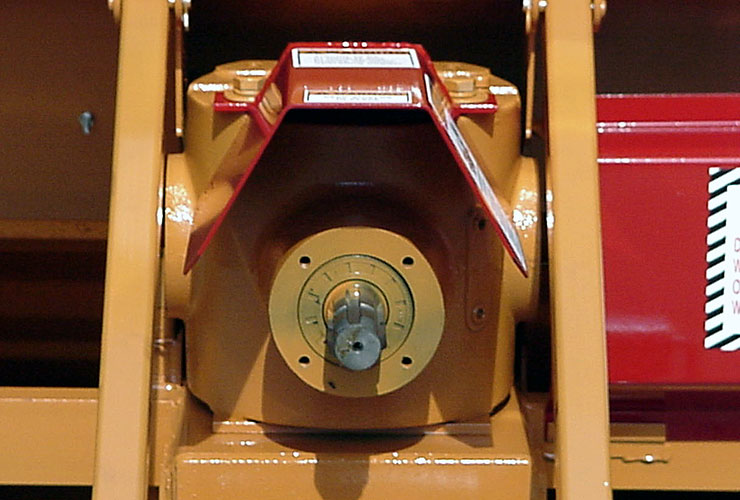

  • • Bondioli 2201 Gearbox
  • • 540 rpm, 1000 rpm available by special order
  • • Gear ratio 2.42:1
  • • Split conveyor
  • • Orbit motor drive on conveyor
